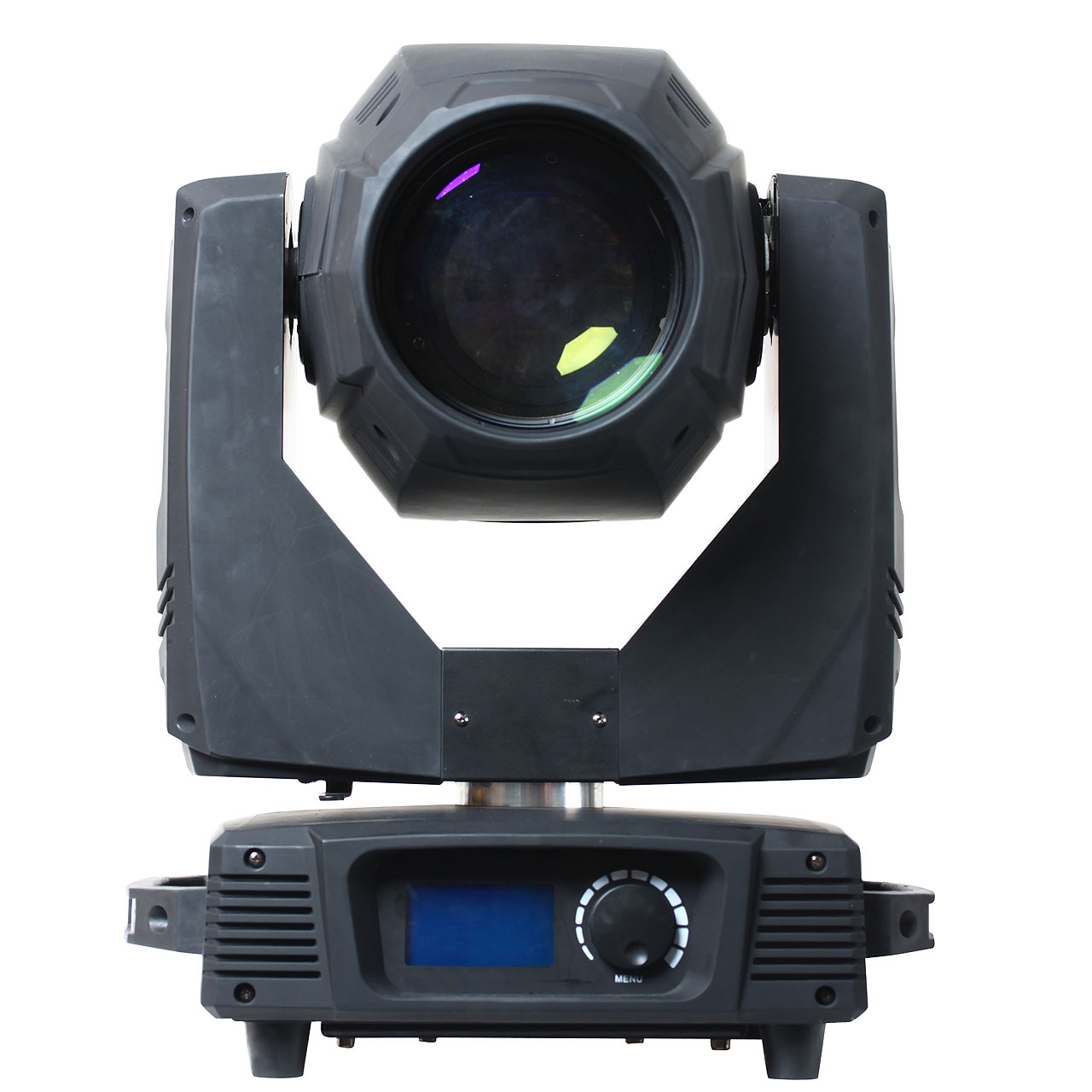

Technical Feature
Lamp
YODN MSD 330 R15,Average lifespan 2000 hours
Ballast
100 - 240V 50-60Hz
Color temperature
8000K/6700K/4500K/3200K

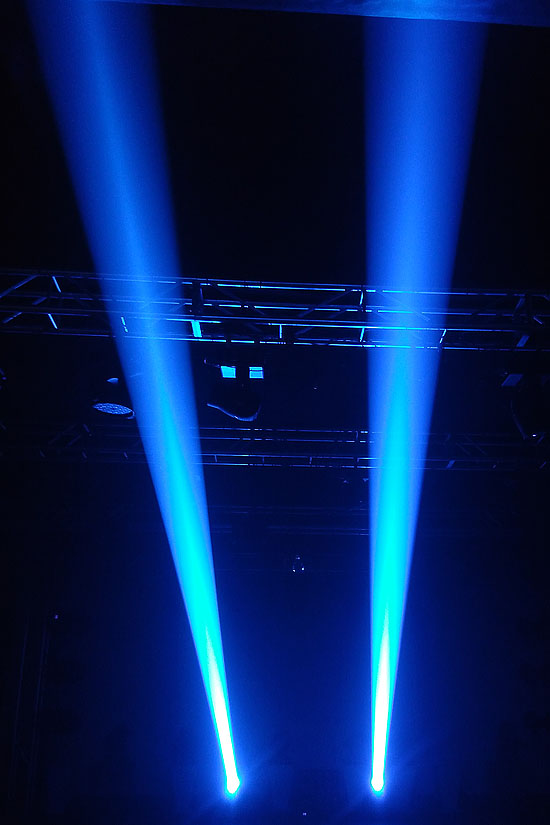

Beam angle
0-4.8°adjustable
Dimmer
0-100% linear dimmer
High-speed Strob
pulse strobe ,synchronous and asynchronous strobe ,1-20per second .
Static color
one static color wheel with 14 colors plus open .half-color effect ,linear color switching effect ,two directions rainbow rotation effect .
Rotating gobo
one rotating gobo wheel with 12 interchangeable gobo plus open ,variable speed shake and bi-directionally rotatable effect with 16 bit precision fine tune
Static gobo
one static gobo wheel with 16 gobo plus open ,variable speed shake and two directions rotation effect
Prism 1
one 8-facet independent rotation prisms
Prism 2 one 24-facet effect achieved by 16-facet prism two combined with 8-facet prism Focus
linear pure glass focus function
Frost
independent frost effect
Pan/Tilt
Pan 540°/630°(16 bit precision ),Tilt 270°(16 bit precision ).With three-phase motors running smoothly and quietly .
Display
wide LCD screen with Chinese and English two version window
Cooling system
intelligent cooling monitor system .Specific parts can be cooled down automatically according to different temperature separately .Fan speed can be monitored on the LCD .
Control channels
3 channel mode .20/18/15
Dimmer
460 x450 x680mm
IP rate
IP20
Weight
26kgs
